Chilli GPS 2xCarbon

Chilli GPS 2xCarbon

  • Wingspan
    183in (4.65m)
  • Wing Area
    1666 sq.in.
  • Airfoil
    VJV 1/9-1/8
  • Length
    78 in
  • Weight
    15 lbs (6800 g)
  • Controls
    Rud/Ele/Ail/Flap/Throttle
  • Motor type
    Neu 1512/1.5d/6.7 (or 1518 call us)
  • Battery config
    5s 5000 Lipo
  • Channels
    8 ch.
  • $1999.95
Qty:
Video of electrified Chilli by Webmaster MG-Wohlen

Chilli GPS with Double Carbon

Chilli GPS with Double Carbon is for the pilots who want to fly a large and impressive model aggressively on the slope with aerobatics! Built extra-strong to withstand the airloads of steep descents from 150 meters (500 feet)!

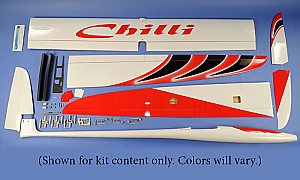

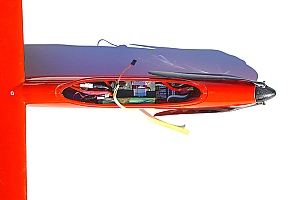

This model is supplied with most of the work already done. It is fully composite-built. Wings with flaps, fuselage, and tail are hinged, and pushrods installed. The customer only needs to install the radio gear.


  • Kevlar hollow molded fuselage with carbon tape reinforcements on the fuse sides

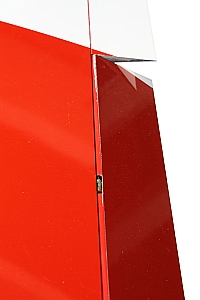

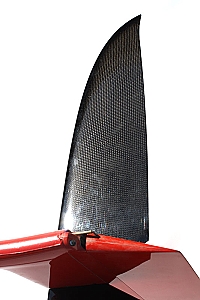

  • Elevator bellcrank installed. Elevator servo mounted rear inside fin foot. Vertical tail removable!
  • Double wall molded canopy. Attachment system by music wire installed

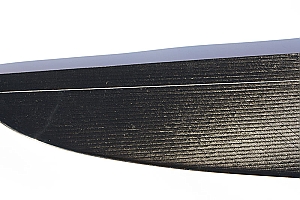

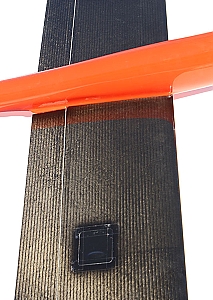

  • Wing and empennages: full Carbon, hollow molded. Color/graphics sprayed into the mold before laminating
  • Rectangular hollow carbon wing joiner
  • LDS system (Linear Drive System) for ailerons and flaps linkages
  • CNC-cut plywood servo trays included
  • Hardware: Rudder flex pushrod (kevlar) installed inside the fuse, fiberglass rudder control horn, metal clevises, LDS system, plywood fuselage tray, MPX connectors, etc.

Recommended motor:

https://www.soaringusa.com/NEU-Motor-1512-1.5D-6.7-1.html

Recommended prop: RFM 20x13

https://www.soaringusa.com/RFM-20x13-Folding-Prop

Recommended spinner: RFM 38/6/0

https://www.soaringusa.com/RFM-Spinner-38-6mm.html

Recommended ESC: Edge lite 200

https://www.soaringusa.com/CC-Phoenix-EDGE-Lite-200-Brushless-Speed-Controller.html
