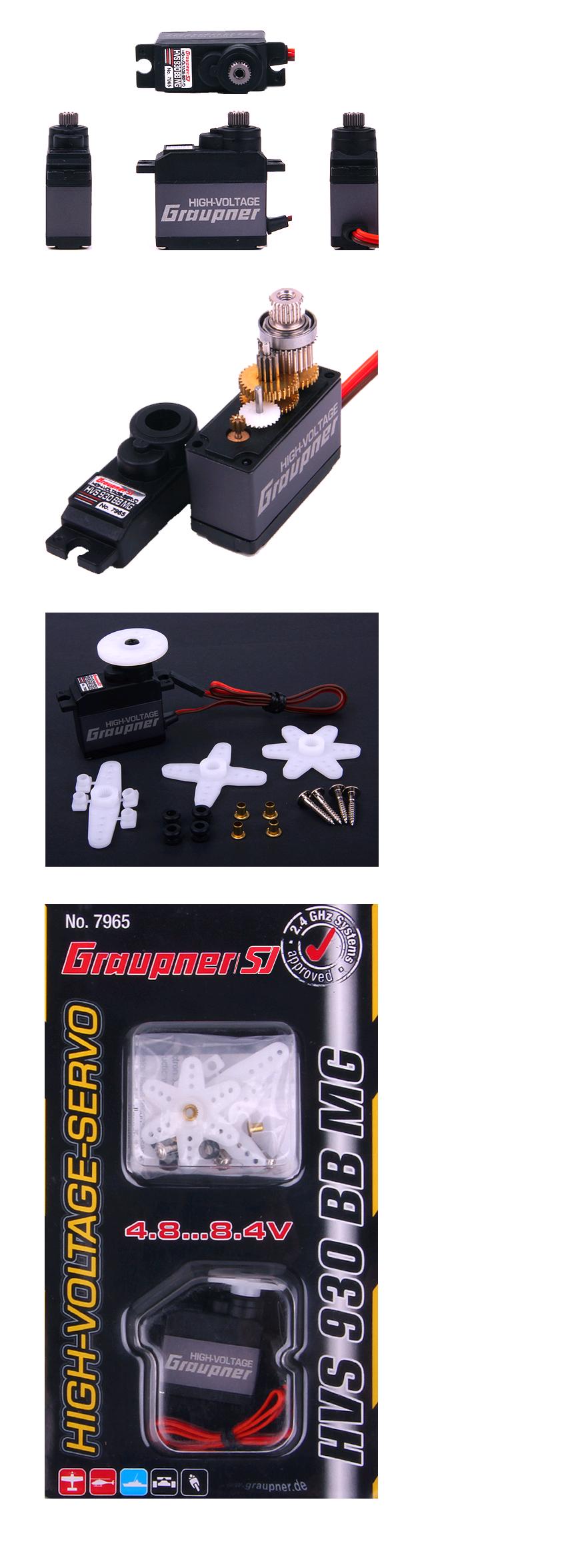

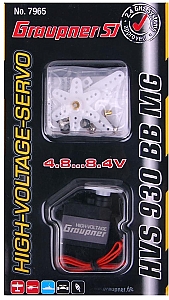

Graupner HVS 930 BB MG High Voltage Precision Digital Servo
Graupner HVS 930 BB MG Precision Digital Servo
-
Weight24.50 g ( 0.86 oz )
-
FeaturesDigital
-
Motor type3-Pole Ferrite
-
Bearing Type1 Ball Bearing
-
Torque(6V) 4.5 Kg.cm 62.50 oz.in(7.4v) 5.5 Kg.cm 76.39 oz.in
-
Size30.0x13.0x33.0 mm (1.18x0.51x1.30 in)
-
Speed(6V) 0.16 Sec/60 (7.4v) 0.14 Sec/60
-
Voltage6V - 7.4v
Graupner HVS 930 High Voltage BB MG Precision Digital Servo
The HVS 930 BB MG is designed to operate on higher voltages, 7.4V, The low deadband technology and Graupner's exclusive programmable digital circuit for reliable, excellent performance, will provide user satisfaction. Even though it’s classed as a torque type servo, D7-130MT still has a very impressive speed. The heat sink case will provide lower operating temperatures, longer run times.
Key Features
• Digital servo featuring dynamic torque, excellent Speed, superior response and holding torque
• Programmable Digital Circuit and SMT circuitry
• 2048 high resolution
• Supporting 1~16µ depending on programming
• Covering the wide range of frame rate 20Hz~400Hz
• 12 bit processing circuit (At least twice resolution comparing to 10 bit processing circuit)

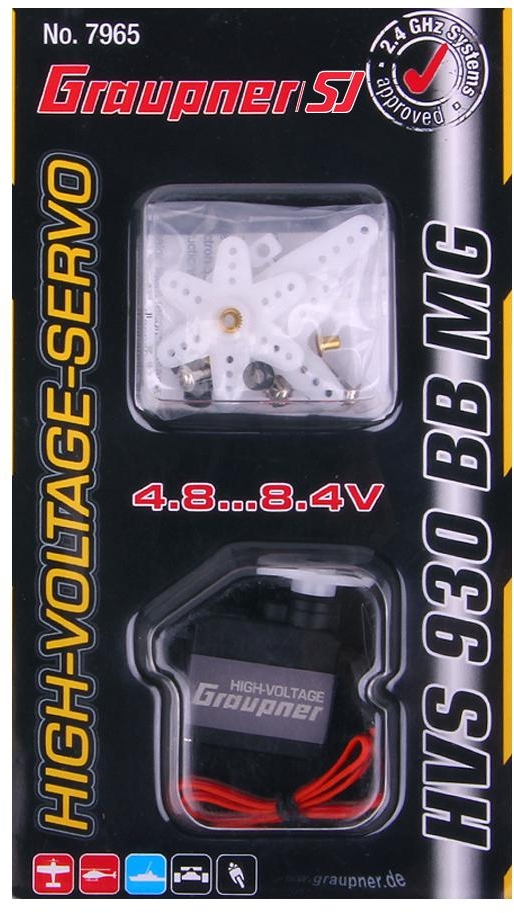

Includes
Servo unit
Horn set
|
|
|
