Pulsar PRO 4000 E
The Pulsar Pro 4000e improves on the success of the Pulsar line of competition models, now with a larger wing, lower wing loading, 2 deg dihedral, and the same quality craftsmanship that you have come to expect in the Pulsar series.
Wingspan157 in (4.0 m)
AirfoilAG 25 mod.
Pulsar Pro 4000 E
The Pulsar Pro 4000e improves on the success of the Pulsar line of competition models, now with a larger wing, lower wing loading, and the same quality craftsmanship that you have come to expect in the Pulsar series.
The three piece wing is extremely light but very strong through the use of a kevlar/carbon woven cloth D-box leading edge, with carbon capped ribs and a carbon trailing edge. The ailerons and flaps are pre-hinged with integral shrouds fitted to the flaps allowing for very effective crow braking (great way to scrub altitude and nail the spot landings!).
The Pulsar Pro 4000e is well balanced in more ways than one.. She has a generous wing that is extremely light, The Pulsar Pro 4000e also sports removable tail planes to match the 3 piece wing, making transportation a breeze.
This design is resilient to heat, cold and moisture. Wing and control surfaces are not subject to warping, as is usually the case with full balsa model counterparts.
The control surfaces are pre-hinged with integral shrouds fitted to the flaps and ailerons making less drag.
The Central panel of the Pro model is now made with 2 deg Dihedral, which improves turn performance, especially in small thermals.
The fuselage now has a removable canopy for easy access.

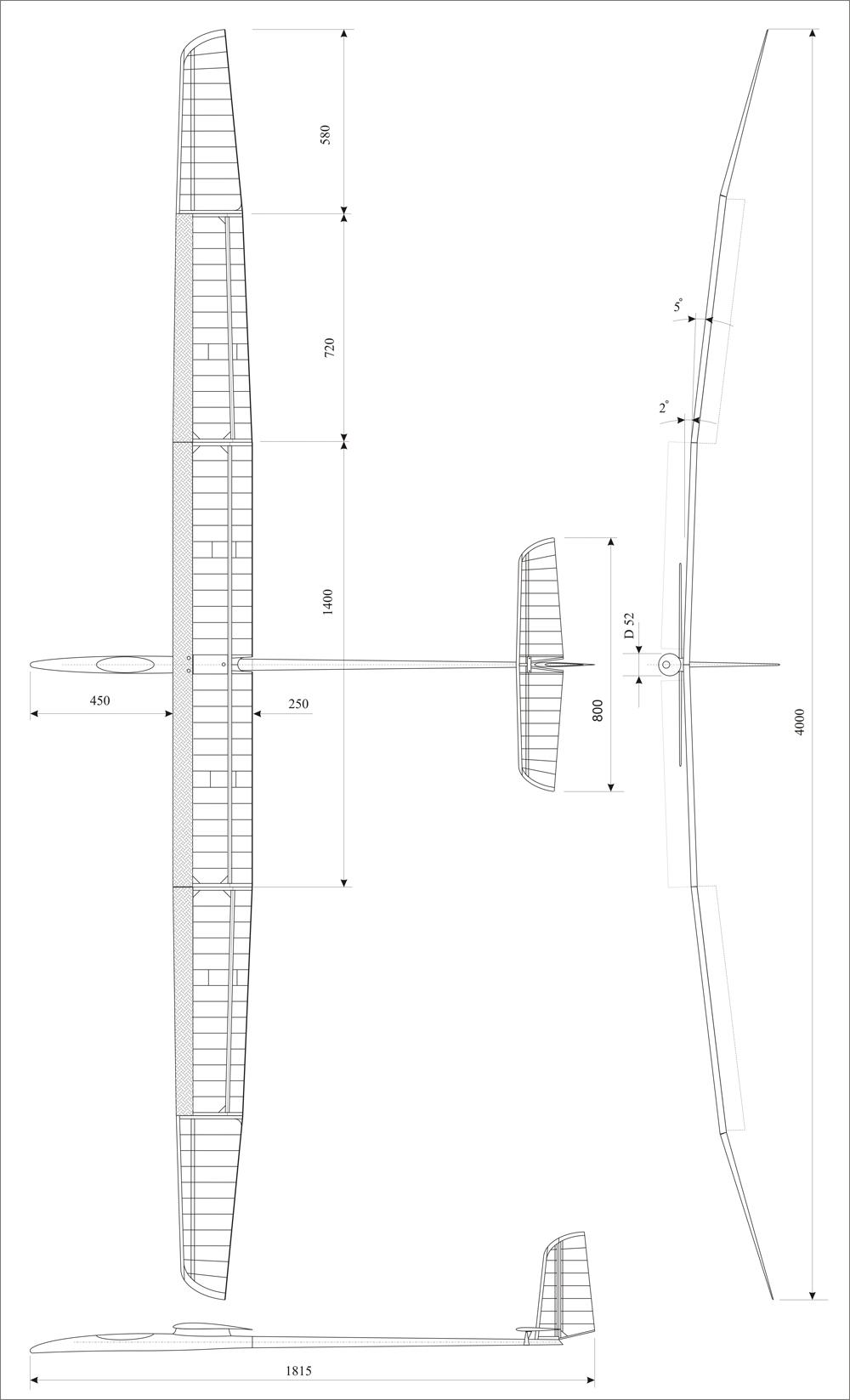

Wing span: 4000 mm
Length: 1815 mm
Wing Area: 85.7 sq. dm
Airfoil: AG 25 mod.
Weight (less R/C gear): 1050 g
Control: Ailerons, Rudder, Elevator, Flaps, Motor.
Recommended Control Travel:
Elevator: + / - 15 mm
Rudder: + /- 35 mm
Flap: Full down
Ailerons: + 10 mm/ - 6 mm Take off and landing
+ 8 mm/ - 4 mm Glide
Motor: Neutron 707 2y 6.7 (P29) or Neu 1105 2.5y 6.7 (P29)
ESC: Castle Creations Edge Lite 50
Prop: RFM 15.5 x 10 or RFM 16x10
Spinner: RFM Spinner 38/6mm
Servo: MKS DS6100 all around
Battery: Thunder Power 65C LiPo 1800 3S
