Neutrino F5J 4m X-tail
The Neutrino F5J is an ultra-lightweight model specially optimized for F5J competition. It features compact portability to and from the flying field as no part is longer than 44 inches. Features a very thin optimized airfoil and the new longer fuse.
-

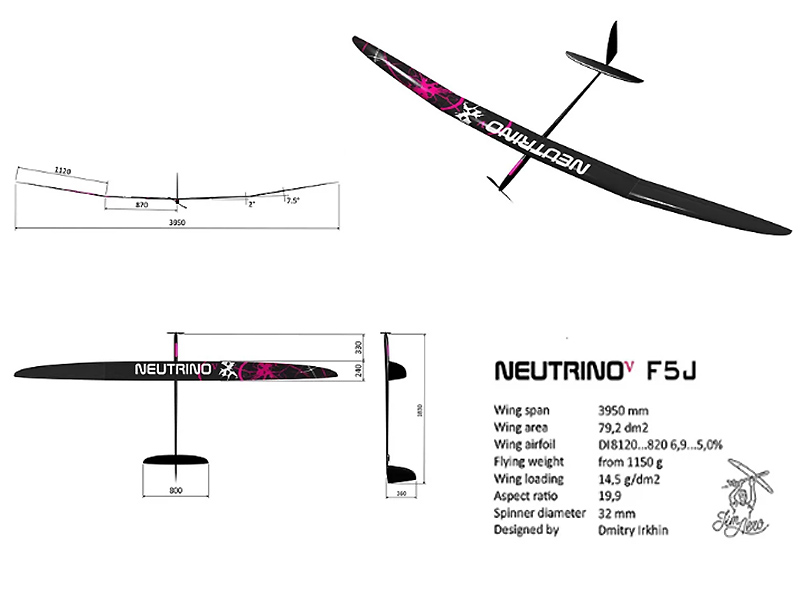

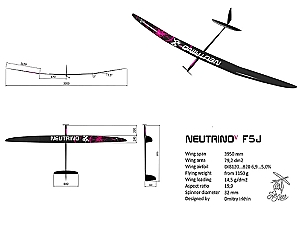

Wingspan155.5 inches (3950 mm)
-
Wing Area1227.6 sq.in (79.2 dm2)
-
Wing loading4.75 oz/sq.ft (14.5 g/dm2)
-
AirfoilDI8120~820, 6.9~5.0%
-
Weightfrom 40.56 oz (1150 g)
-
Motor typeNeuMotor 1102/3.5Y/5.8 (P22)
-
Battery config3s LiPo
-
Maximum Current50 amps
Neutrino F5J 4m

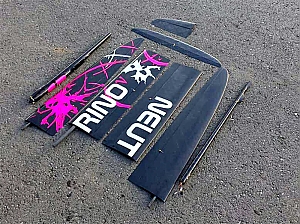

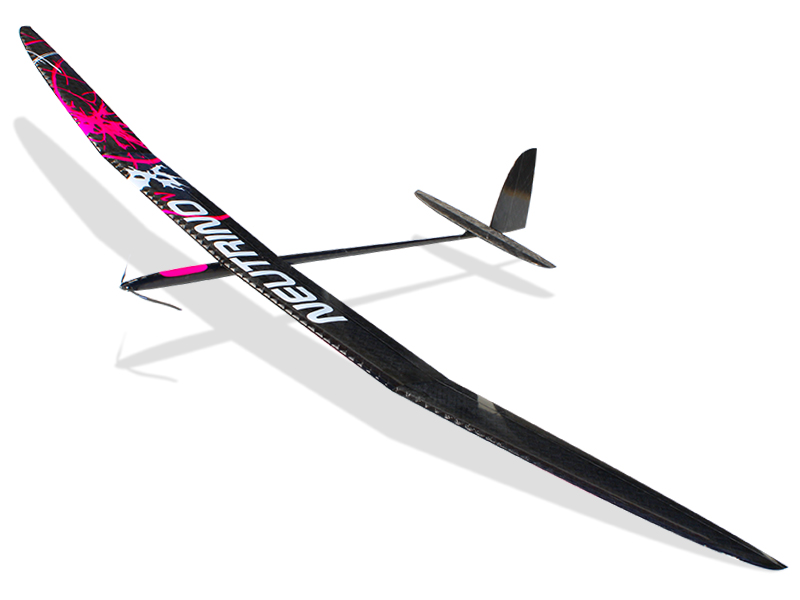

Soaring USA is proud to offer the JimAero Neutrino F5J, the newest ultra light competition F5J glider with a 3.95-meter wingspan. The wing of the Neutrino F5J consists of four parts and the fuselage consists of two parts which greatly simplifies transportation. The longest part of the model are the wing tips which each measure 44 inches (1120 mm).
The Neutrino’s wing has series of transitioning airfoils DI8120...820, specially designed for ultra light F5J gliders. It has a thickness changing from 6.9% on the root to 5.0% at the tip. This is much thinner than airfoils for F3J which are are sometimes used for F5J. This airfoil combo has great performance throughout a wide speed range due to this special geometry, plus excellent reaction to changes in flap deflection depending on the flight mode chosen.

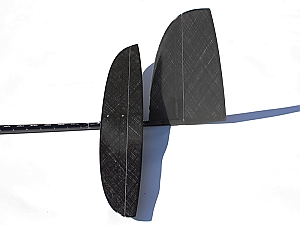

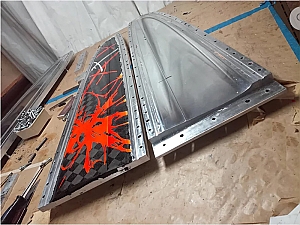

The wing and tails are made with solid core technology from PMI foam (Rohacell core). Neutrino is available in two versions. Standard version has about 1350 g flying weight. Its wing made from spreadtow carbon fabric 62 g/m. Standard version can be used with ballast. Light version has flying weight from 1150 g. In this version wing made from spread carbon 28 g/m2 and has less rigid spar. Light version is not recommended for using with ballast.
Order this model today or give us a call or e-mail us with any ordering questions, we'll be happy to help make the right equipment choices for this glider.
Aspect Ratio19.9:1
Spinner Diam.32mm (1.259 in)
Designer Dmitry Irkhin
Recommendations:
Radio: Sub Micro servos and micro receiver recommended
Recommended Motor: NeuMotor 1102/3.5Y/5.8 (P22)
Recommended Firewall: PNC Alum Firewall 32m-P22
Recommended ESC: Edge Lite 50 BL-ESC
Recommended Battery: Tattu Battery 850mAh 3S 75C Lipo
Recommended RX Battery: Battery RX LiPo 900mAh 2 cell
Recommended Spinner: GM 32/6mm Spinner
Recommended prop: GM 15x8 Prop.
Recommended Servos: (6) MKS 6100HV Servos
Recommended Servo Frames: (2) MKS 6100 Servo Frame Sets
RC Groups Review of the Neutrino by Jason Cole: click here
Recent quote by Jason Cole: "I did really well with the Neutrino in a mixed TD contest in Florida last month. Came in 2nd on the first day by only 5 points and then 1st the second day. I was the only pilot to make the full flight time every flight. Almost felt like cheating with this plane!"
|
|
|
