GliderKeeper
Using the latest barometer capsule technology, GliderKeeper also features an accelerometer and convenient built-in OLED display.

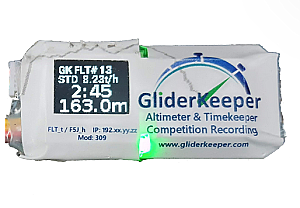

GliderKeeper Altimeter and Competition Recorder
Flight time is started upon throttle movement during launch, the same event as for motor timing in F5J rules. Landing is captured by measuring the fuselage vibration on the model´s touch down.

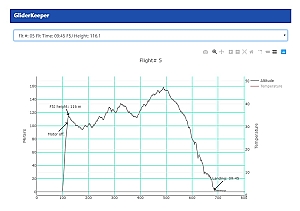

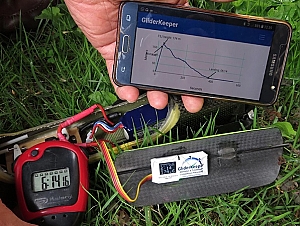

The GliderKeeper microcontroller features native Wi-Fi capability, so after landing you can choose to perform another F5J flight or enter in Wi-Fi mode to see your flight results, both F5J “start Height” and duration of the flight, on your mobile device.
Specifications:
Dimensions: 53 x 24,5 x 5,8 mm
Weight (including cable): 12,8 gr
Cable length: 200mm
Power Supply: (min.) 4,8 V / (Max.) 8,4 V/ (Recomd. Wi-Fi AP) < 5,6V
Current consumption: Flight Mode <20 mA / Wi-Fi STA 60mA / Wi-Fi AP 200mA
Barometric Pressure Sensor: 300-1250 hPa, 8 Pa. Rel accuracy (0,6m)
Accelerometer Sensor: 12 bit/ + 8g range.
Memory storage: 148 flights or 5 Flight hours.
Wi-Fi: 802.11 b/g/n WPA/2
|
|
|
